Pushback Pallet Rack Systems in Washington, DC

Name: DC Pallet Racking
Address: Washington, DC, US
Telephone: (240) 540-4372
Price range: $$

Quality pushback rack supplied and installed by DC Metro's trusted warehouse solutions team.

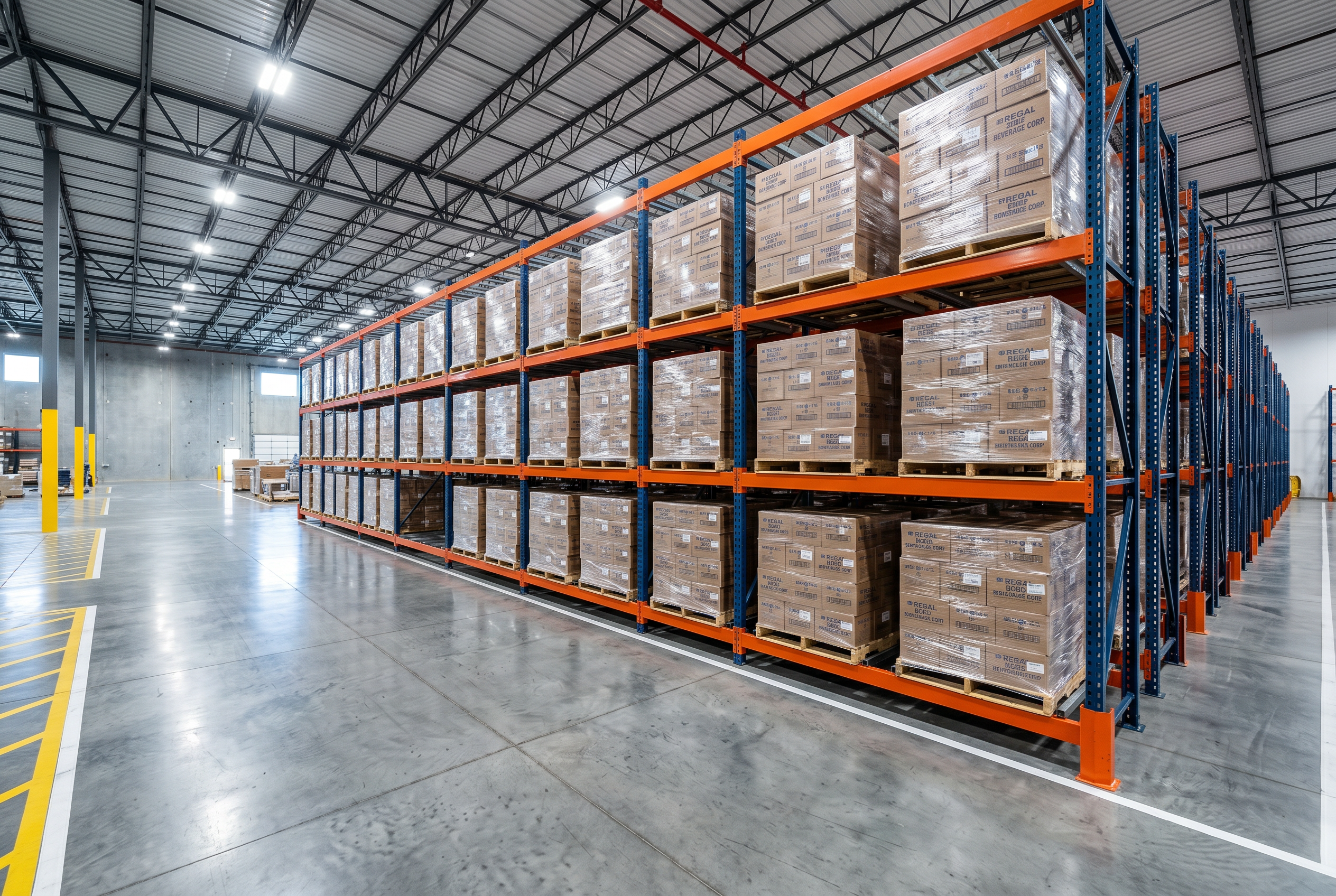

Pushback pallet rack system with nested carts and inclined rails in a Washington DC area warehouse

Ready to get started? Get a free, no-obligation quote today.

High-density LIFO pallet rack — 2 to 6 pallets deep per lane, gravity-fed nested carts, standard counterbalance compatible.

About Pushback Rack

Pushback rack is a high-density cart-based storage system that stores 2 to 6 pallets deep in each lane on gently inclined rails. When you load a pallet, the previous pallet is pushed back on nested carts; when you pick, gravity rolls the next pallet forward into pick position automatically. The result is roughly 1.8 to 2 times the pallet positions of selective racking in the same footprint — without the in-rack damage risk of drive-in, and without specialized trucks. Pushback is the default high-density choice for the DC metro cold-storage corridor along I-95, Jessup and Laurel grocery distribution, and CPG operations across Maryland and Northern Virginia where SKU homogeneity allows lane-level grouping and LIFO rotation is acceptable. DC Pallet Racking designs, supplies, and installs pushback systems engineered to IBC 2021 (DC, Maryland, and Virginia amendments) and RMI ANSI MH16.1-2023, with seal-stamped structural drawings and permit support for every install throughout the DC metro.

How Pushback Rack Works

The mechanics behind the system — and why they matter for your operation.

Inclined rails & nested carts

Each lane is built from steel rails pitched at 3 to 6 percent, with nested wheeled carts stacked one inside the next — one cart per pallet position beyond the front.

Load from the aisle

A lift truck sets a pallet on the top cart. Adding the next pallet pushes the prior pallet back; carts nest smoothly beneath each successive load.

Gravity feeds retrieval

Pull the front pallet and the next cart rolls forward on its own into pick position. No power, no activation — just the incline.

Same aisle, in and out

Loading and picking both happen from the same face. Lift trucks never enter the rack structure, which is the primary safety and maintenance advantage over drive-in.

When to Choose Pushback Rack

• You store 2 to 6 pallets of the same SKU together and LIFO rotation is acceptable
• Cold-storage energy costs make wide-aisle drive-in forklift traffic expensive
• Upright damage from in-rack forklift traffic is a documented cost in your facility
• You need 1.8–2× selective density without investing in a reach or narrow-aisle fleet
• You want high density but need faster cycle times than drive-in allows

When Not to Choose

• You need strict FIFO rotation for dated inventory — consider pallet flow instead
• Every pallet in a lane is a unique SKU — stay with selective racking
• You need lane depths greater than 6 pallets — consider drive-in or pallet flow
• Your fleet already runs reach trucks and you want maximum density at lowest cost per position — consider drive-in

Specifications at a Glance

Lane depth: 2 to 6 pallets deep
Pallet capacity: Up to 3,000 lbs standard, 4,000 lbs structural
Rail pitch: 3–6% gravity-feed incline
Cart system: Nested powder-coated steel carts on polyurethane wheels
Upright options: 3" × 3" structural channel or 3" × 1-5/8" teardrop
Beam profile: Welded step beam or pallet-support crossbar
Rotation: LIFO (Last In, First Out)
Forklift type: Standard counterbalance — no reach truck required
Code compliance: IBC 2021 (DC, MD, VA amendments), RMI ANSI MH16.1-2023
DC metro seismic / wind: SDC A–B, wind per ASCE 7 (115 mph 3-sec gust typical)

Pushback vs. Other High-Density Options

Attribute	Selective	Pushback	Drive-In	Pallet Flow
SKU selectivity	100%	Medium (per lane)	Low (per bay)	Low (per lane)
Rotation	Any (FIFO or LIFO)	LIFO	LIFO	FIFO
Lane depth	1 pallet	2–6 pallets	2–10 pallets	2–20 pallets
Forklift enters rack	No	No	Yes	No
Rack-damage exposure	Low	Low	High	Low
Density vs. selective	1.0×	1.8–2.0×	2.0–2.5×	2.5–3.0×
Forklift required	Standard	Standard	Standard	Standard
Relative cost per position	$	$$	$$$	$$$$

Where Pushback Rack Fits in the DC Metro

Specific industries across DC, Maryland, and Northern Virginia where this system pays off.

Cold storage — Jessup, Laurel, Beltsville

Americold, Lineage Logistics, and US Cold Storage facilities along the I-95 corridor use pushback to compress footprint while keeping forklifts in wider conditioned aisles — every cubic foot of conditioned air lost to in-rack traffic is reload energy.

Beverage distribution — Capitol Heights, Baltimore, Manassas

Reliable Churchill, Washington Wholesale Liquor, and regional beer and wine distributors run homogeneous SKU pallet lots — a near-perfect fit for pushback lane grouping and LIFO rotation on fast-moving products.

CPG & grocery DC — Jessup, Upper Marlboro, Hanover

Giant Food (Jessup), Safeway (Upper Marlboro / Landover), and Wegmans (Hanover) regional DCs use pushback for pre-shipment staging and bulk SKU storage where same-SKU lane depth is the planning unit.

Auto sector inventory — Sterling, Chantilly, Herndon

Volkswagen Group of America (Herndon HQ), Mercedes-Benz regional parts, and Northern Virginia tier-1 suppliers use pushback for buffer storage of repetitive-SKU components — density without the rack-hit risk of drive-in.

Paper & packaging — Baltimore, Hagerstown

Corrugated, stretch film, and label stock run in high-volume homogeneous SKUs. Baltimore packaging converters and Hagerstown-corridor distribution use pushback to cut pallet-position footprint without a specialty truck fleet.

Product Features

2, 3, 4, 5, and 6-deep lane configurations
Nested steel cart system on polyurethane wheels, powder-coated finish
Gravity-feed inclined rails — no power or activation required
Compatible with 42" × 48" GMA and custom pallet footprints
Teardrop roll-formed or structural-channel upright options
Engineered to IBC 2021 (DC, MD, VA amendments) and RMI ANSI MH16.1-2023
Sealed structural drawings provided for every DC metro installation

Benefits for Your Business

Nearly double the pallet positions of selective racking in the same footprint

Zero forklift entry into rack eliminates the leading cause of upright damage

Standard counterbalance compatibility — no specialized truck fleet investment

Faster picking than drive-in because trucks never leave the aisle

Frequently Asked Questions

Real answers for buyers researching pushback rack in the DC metro area.

How many pallets deep can pushback rack go?

Standard configurations run 2, 3, 4, 5, or 6 pallets deep per lane. Deeper lanes (7+) can be engineered but are uncommon because cart-nesting tolerance and pallet-quality variation create jam risk beyond 6 deep. Most DC metro installations land at 3 or 4 deep as the balance point between density and operational reliability.

What is the weight limit per pallet in pushback rack?

Typical pushback systems are rated to 3,000 lbs per pallet position, with structural systems rated to 4,000 lbs. Cold-storage beverage and food-grade CPG loads sit comfortably inside standard ratings. Heavier loads — metal coils, automotive castings, some construction product — usually require structural systems or an alternative rack type entirely.

Can I mix SKUs in the same pushback lane?

You can, but each lane rotates LIFO — the last pallet loaded is the first one picked. If two SKUs share a lane, the rearmost SKU is inaccessible until the lanes in front of it are cleared. For FIFO-critical inventory (food with tight code dates, dated pharmaceutical lots), pallet flow rack is the better choice.

Does pushback require specialized forklifts?

No. Pushback is designed to work with standard counterbalance forklifts because the forklift never enters the rack. This is a major advantage over drive-in systems, which typically need reach or narrow-aisle trucks. You load and pick from the same aisle with whatever fleet you already operate.

How does pushback compare to drive-in rack?

Both are LIFO and both increase density over selective, but drive-in trades more density (2–10 pallets deep) for higher rack-damage exposure because forklifts enter the rack structure. Drive-in pallets also sit on side rails rather than beams. Pushback is typically the right call when your fleet is not already running reach trucks and you want to minimize ongoing rack repair spend.

What is the typical ROI versus selective racking?

Pushback costs roughly 2× per pallet position versus selective, but delivers 1.8 to 2.0× the positions in the same footprint. The ROI math usually sits outside the rack itself: avoided building expansion, reduced aisle count, and lower energy costs in cold-storage environments. Most DC metro pushback projects pencil out in 18 to 36 months when building expansion would otherwise be on the table.

Related Services

We don't just supply — we design, install, inspect, and maintain.

Pallet Racking Installation Engineering & Permitting Warehouse Design & Space Planning Project & Installation Management

Get a Free Quote

Request Free Quote (240) 540-4372

Free, no-obligation quotes

Professional installation available

Licensed & fully insured

Serving all DC metro areas
