Top 5 Pallet Racking Systems for DC Metro Warehouses (2026 Guide)

Washington DC Metro warehouses span everything from older concrete tilt-up facilities in Alexandria and Bethesda to brand-new Class A distribution centers in Manassas, Gaithersburg, and Fredericksburg. With land costs high and building permits required across DC, Northern Virginia, and suburban Maryland, choosing the wrong racking system is an expensive mistake. This guide covers the five most common pallet racking systems used in DC Metro warehouses — what each one does, who it's right for, and what tradeoffs to expect.

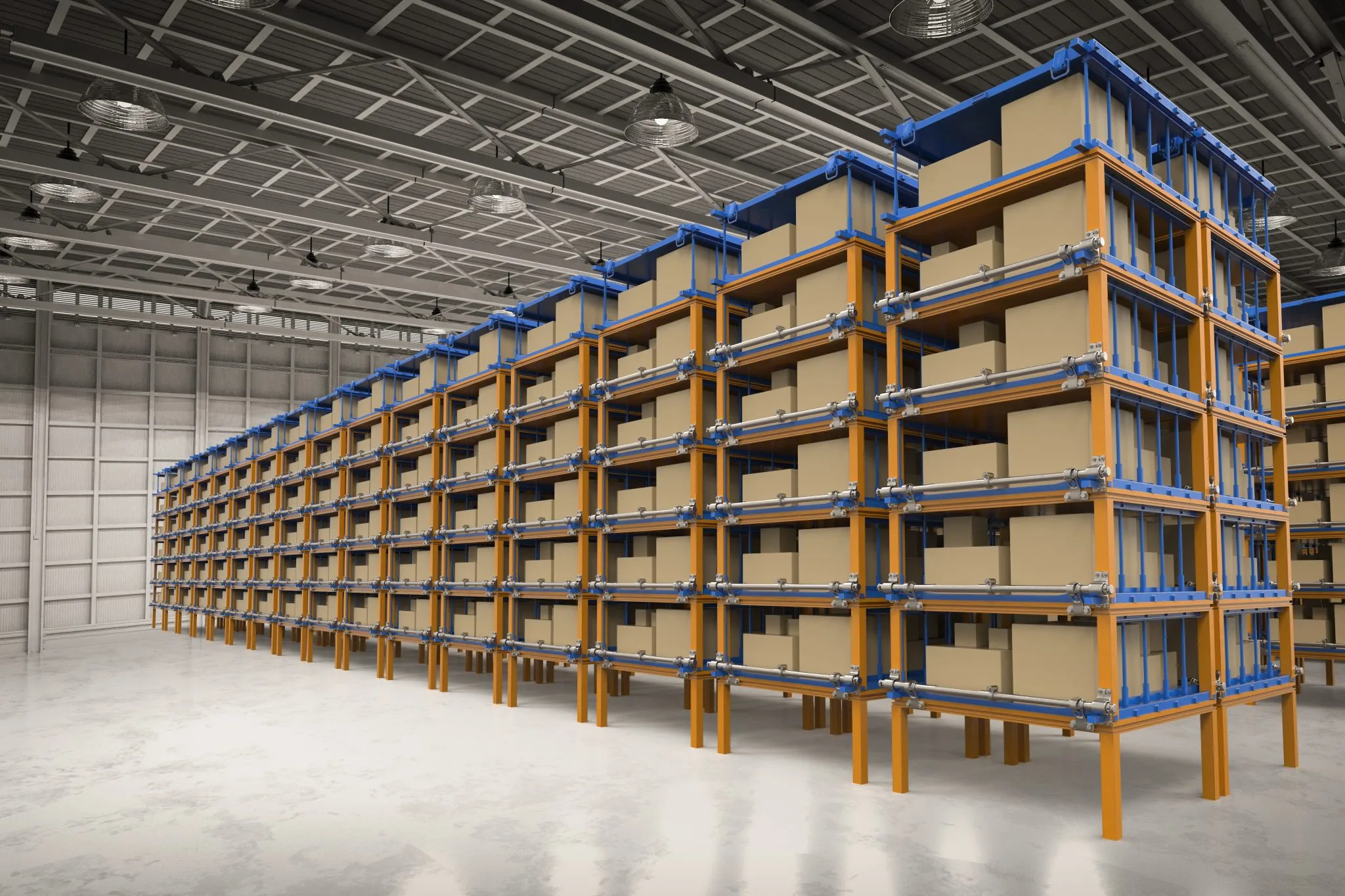

The 5 Best Pallet Racking Systems for DC Metro Warehouses

1. Selective Pallet Racking — Best for General Use

Selective racking is the most widely installed system in the DC/MD/VA region — and it earns that position. Every pallet is individually accessible without moving another load. It works with standard counterbalance and reach forklifts, it's straightforward to reconfigure as inventory changes, and it offers the lowest cost per pallet position of any system on this list.

Best for: Government contractors, multi-SKU distributors, e-commerce fulfillment, and any DC Metro warehouse requiring direct access to individual pallet positions throughout the operating day.

Tradeoff: Lower storage density than high-density alternatives. You'll need more aisle space per pallet stored, which matters in smaller DC and inner-ring suburban facilities where square footage is at a premium.

2. Drive-In / Drive-Through Racking — Best for High-Density Storage

Drive-in racking allows forklifts to enter the rack structure and store pallets on rails rather than beams. By eliminating aisles between bays, you can fit 2–3 times more pallets per square foot than with selective racking. Drive-through configurations allow entry from both sides and enable FIFO product flow.

Best for: Cold storage operations, single-SKU bulk inventory, seasonal products, and any warehouse where land and building costs make density the top priority.

Tradeoff: Standard drive-in systems are LIFO only. Requires forklifts with a narrow enough mast to safely enter the rack bay. Damage potential is higher than selective if operators aren't well-trained.

3. Push-Back Racking — Best for Medium-Turnover Products

Push-back systems store pallets 2–6 deep on inclined rails with nested carts. Loading a new pallet pushes existing ones back; removing the front pallet lets the rest roll forward automatically. You get meaningfully more storage density than selective racking while still keeping a broader variety of SKUs accessible.

Best for: Operations with moderate SKU counts, medium inventory turnover, and a need to balance density with product accessibility.

Tradeoff: Higher upfront cost than selective racking. LIFO access only. Requires regular cart and rail maintenance to keep performance consistent over time.

4. Pallet Flow Racking — Best for FIFO Operations

Pallet flow racking uses inclined roller conveyors to move pallets from the load end to the pick face automatically. You load from one side, pick from the other — true first-in, first-out rotation without double-handling. This system is common in pharmaceutical distribution corridors along I-270 in Maryland and food and beverage operations throughout Northern Virginia.

Best for: FDA-regulated distribution, perishable food and beverage, healthcare and pharmaceutical warehouses, and any operation where FIFO rotation is non-negotiable.

Tradeoff: Highest cost per pallet position of any system on this list. Requires consistent pallet quality — damaged or warped pallets can jam roller beds.

5. Cantilever Racking — Best for Long or Irregular Items

Cantilever racking uses horizontal arms extending from a central vertical column, with no front uprights blocking access from the aisle. It's the only practical system for products that don't fit on standard pallet rack beams: lumber, pipe, steel bar stock, conduit, carpeting, sheet goods, and furniture. Widely used by building materials distributors along Route 1 in Northern Virginia and the I-270 corridor in Maryland.

Best for: Building materials, dimensional lumber, steel and aluminum, pipe and conduit, sheet goods, glass, flooring, and furniture.

Tradeoff: Designed exclusively for non-palletized long goods — not appropriate for standard pallet storage.

How to Choose the Right System for Your DC Metro Warehouse

Before comparing rack types, answer these questions about your operation:

• How many SKUs are you storing? High SKU count points toward selective. Low SKU count makes drive-in or push-back viable.
• Do you need FIFO rotation? Expiration dates or lot tracking requirements point toward pallet flow or drive-through.
• What are your pallet dimensions and weights? Non-standard sizes affect beam and rail selection.
• What's your clear height? Measured floor to lowest obstruction — sets your maximum rack height and total pallet positions.

Most permanent pallet racking installations in Washington DC, Northern Virginia, and suburban Maryland require a building permit. Working with a contractor experienced in DC Metro racking permitting protects your project timeline and budget. Used pallet racking can also reduce upfront costs by 40–60% compared to new systems.

Why DC Metro Warehouse Operators Choose DC Pallet Racking

DC Pallet Racking has served more than 500 warehouses across Washington DC, Northern Virginia, and suburban Maryland for over 10 years. We handle the full project — from warehouse layout and design through permitting, professional installation, and ongoing rack inspection and repair. OSHA-compliant, ANSI/RMI-certified, licensed, and fully insured throughout the tri-state region.
